New Support Channel: Hiworld CANBUS Support

asdasd

@Hiworld-JACK @Hiword-Song

hello, i have a suzuki swift hybrid 2025 indian made, will the box sz02.010 work with my car?

do you have a list of functions that will work?

car oem headunit is a clarion 55t0 - 75tc - 77s0 - PS4808L that i want to replace with a dudu7

thank you!

Hiword-Song

asdasd Could you take a picture of the plug at the rear of the car's infotainment system for us to confirm?

akemale

asdasd Have you got the right canbus?

Cuoresportivo

Hello, I have hiworld canbus ar05.20 in alfa romeo 159.
Steering wheel buttons don't function properly, no reverse camera guidelines or parking sensors. Is there some firmware update option or different model of canbus decoder?

Hiword-Song

Cuoresportivo You need to connect the SWC and KEY radio cables. After connecting the cables, you need to learn the steering wheel buttons in the modification head unit. Are you installing it while keeping the original rearview mirror?

tiinpii

Hello , i have 2025 honda Ridgeline rtle , do you have canbox that support..thanks you.

Hiword-Song

tiinpii Please take photos of the front of the center console, the connector at the rear of the infotainment system, and the infotainment system label for confirmation.

Hiword-Song

tatomi92 I checked the printed data video. There was a slight stutter when increasing the volume while driving. Was the speed of your steering wheel button presses consistent? (Sound of up/down tracks)

tatomi92

Hiword-Song There is a 1-2 sec delay when the volume went down and up after pressing the corresponding buttons on the steering wheel while the car is driving.

asdasd

Hiword-Song

hello

thanks for your response, this are the pictures you asked for.

kolarov

Hi. I have a Kia Sorento XM 2011. Can you tell me which is the best compatible CANBUS model for my car and which provides the most information?

kolarov

kolarov Hi. I have a Kia Sorento XM 2011. Can you tell me which is the best compatible CANBUS model for my car and which provides the most information?

@Hiworld-JACK, @Hiword-Song Can you answer my question?

gismo

Hiworld-JACK I have a VWFA.20 on the shelf that I don't use right now because of a functional mismatch with VW OEM behaviour: In VW OEM radios, when you turn the ignition to position 0 but don't remove the key, the radio keeps playing. It goes to standby only if you pull the key (or after 12ish minutes). VWFA.20 however sets ACC=OFF already when ignition goes to position 0.
I know I can set a standby delay in the radio after ACC goes away but that's not the solution as the radio then also plays on if I pull the key.
I just want to see the original behaviour. Raise does this correctly which is why I still use it despite it has other shortfalls.
Question: Has the above been fixed in a firmware update for Hiworld VWFA.20? If so, where can I obtain the latest firmware update?
I have a VW T6 California btw, which I need to set to VW/PQ/Low.

Hiworld-JACK

gismo Since most customers do not need this feature, and considering that Android navigation consumes more power than the original radio, in order to avoid excessive battery drain that could prevent the vehicle from starting, we have decided not to implement this logic.

Astrolux

Hiworld-JACK

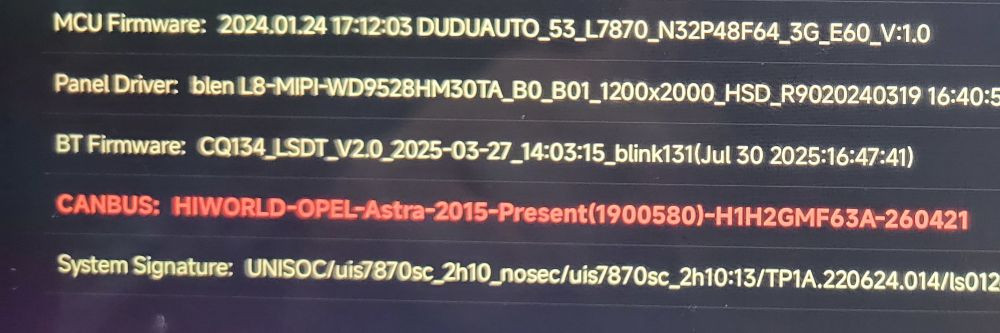

The update went smoothly, but it's not much better. For example, when I select GM, the outside temperature is displayed, but there's no information about open doors. When I select Opel, the doors are displayed, but there's no outside temperature. The vehicle information is also missing a lot of data.

Hiworld-JACK

Astrolux When you select a General Motors vehicle, check if the door status display function is turned off.

dokillo

Hi, which one i need for a 2008 Lexus gs450h thank you!

Hiword-Song

dokillo Take photos of the central control unit and the radio's tail plug for confirmation.

Geruda32

Hello @Hiworld-JACK, and thank you for helping us with our CANBUS Box.

I have Peugeot 308 T9, year 2014, DUDU7 Unit, Hiworld PAF1.21 CANBUS BOX, with different issues.

I've posted a new thread here, so as not to clutter this one:
https://forum.dudu-auto.com/d/3722-troubleshooting-hiworld-canbus-peugeot-308-t9

Regards

Hiworld-JACK

Geruda32 Okay, I've replied.

mrve

@Hiworld-JACK Hello! Is there a decoder that supports the JB74 Suzuki Jimny? Specifically the Australian 3 door model which I understand has a different CAN protocol.

Hiword-Song

mrve There are none available at the moment; we need to find vehicles to enter and exit for testing.

asdasd

akemale

hello, i didnt test the hiworld canbus yet, i was hoping to get an answer here before buying one... however i did test a OD LM 03 (oudi box) and didnt work.

im also having issues finding a fascia that fits my LHD swift, i bought one from aliexpress but the clips are not the same.

Tarek

Hiworld-JACK

Could you please let me know if you are planning to develop or release a compatible CAN bus decoder for the Nissan Patrol Y62 2012 SE ? If so, do you have an estimated timeline for when it will be available?

Thank you for your support. I look forward to your reply.

Hiworld-JACK

Tarek Currently not supported.

coco80

Je reviens encore pour mon problème de canbus hiworld hyf2.20 qui n'affiche pas mes sièges chauffant et volant chauffant sur mon kia sportage de 2018 d'origine il s'active par l'écran tactile car je ne possède pas de bouton physique serait-il possible de voir pour réglé le problème de se canbus dans les paramètres du canbus je vois bien la possibilité d'activer les sièges chauffant mais la case reste grisé elle ne passe pas au vert qu'en j'essaie d'autre model de voiture l'interface pour les sièges chauffant apparaît mais ne fonctionne pas j'ai eu plusieurs voiture et j'ai toujours rencontré des problème avec cet marque de canbus.... Serait il possible d'avoir une mise à jour de se canbus hiworld hyf2.20 en dernière version que je puisse voir si avec la mise à jour mon problème sera régler c'est quand même dommage de ne pas pouvoir faire la mise à jour directement à partir du dudu7 certain autoradio bas de gamme peuvent faire la mise à jour depuis les paramètre canbus mais sur dudu7 impossible ça serais vraiment bien de rejouer cet options dans l'os dudu7 et pas uniquement pour les canbus hiworld mais également pour raise et simple soft je sais bien que j'en demande beaucoup trop mais je suis vraiment déçus par mon dudu7 j'envisage d'ailleurs d'allé chez teyes rien que pour ça je trouve que leur os est bien plus complet que DUDU os

coco80

Hiworld-JACK mais je les fait plusieurs fois j'ai jamais eu de réponse donc mon problème est toujours le même savais vous si votre canbus hiworld hyf2.20 peux activé les sièges chauffant sur kia sportage gt line de 2018 sans bouton physiques d'origine il s'active par l'écran dans les paramètres du canbus je vois bien la possibilité d'activer les sièges chauffant mais la case reste grisé

Hiworld-JACK

coco80
We need to record debugging data videos so that we can analyze the problem.
After opening the debug data window, record the data changes when the seat heating button is pressed. The numbers in the video should be very clear so that I can analyze them.
