DUDU7 Canbus box TD(ZH) problem for Mitsubishi Pajero

lsd2k

Hello, I have a problem with the TD, ZH
canbus box because Mitsubishi Pajero is not in TD (Clear profile, no cars), ZH, TDZH profiles from profiles.
I have 3 canbus boxes and I can't use DUDU7 with Mitsubishi Pajero. On other platforms I select TD - Mitsubishi - Pajero and have functions; doors opening, dynamic park lines, amplifier control and fuel consumption.

Please help me. Please add a TD(ZH) profile for my car Mitsubishi Pajero V98 2013 Rockford amplifier. If you need more information from me, please provide what information is needed. Thank you.

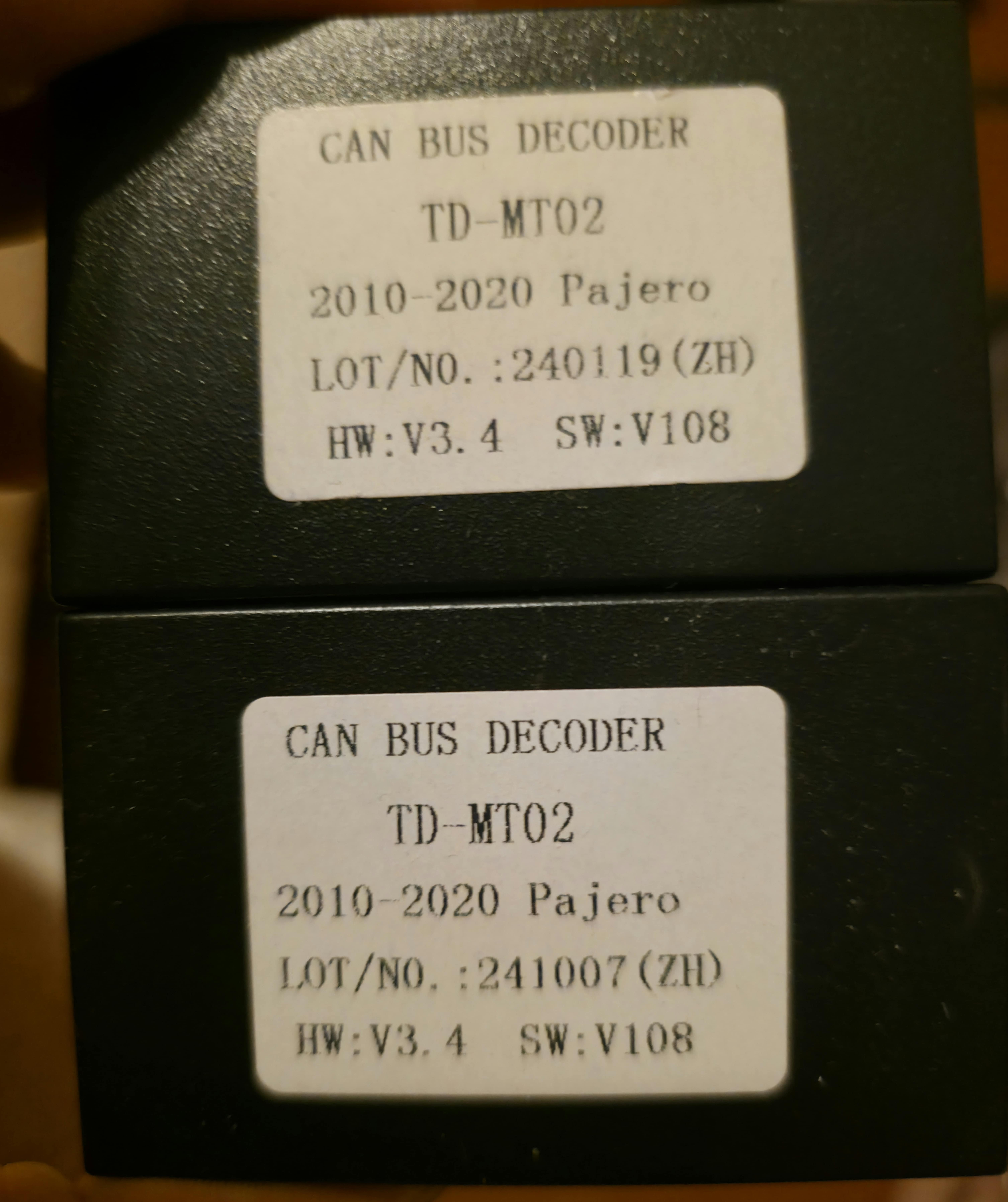

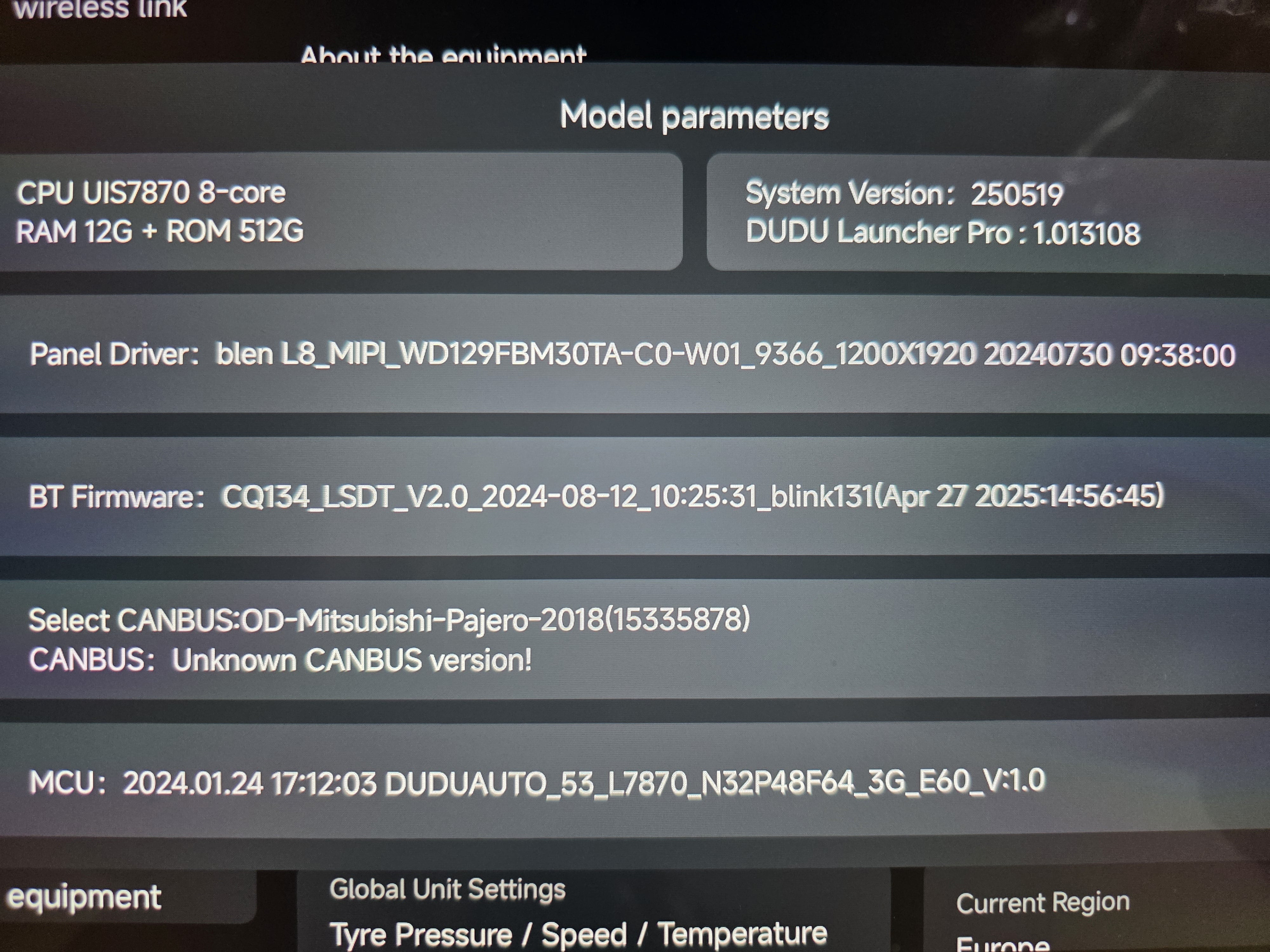

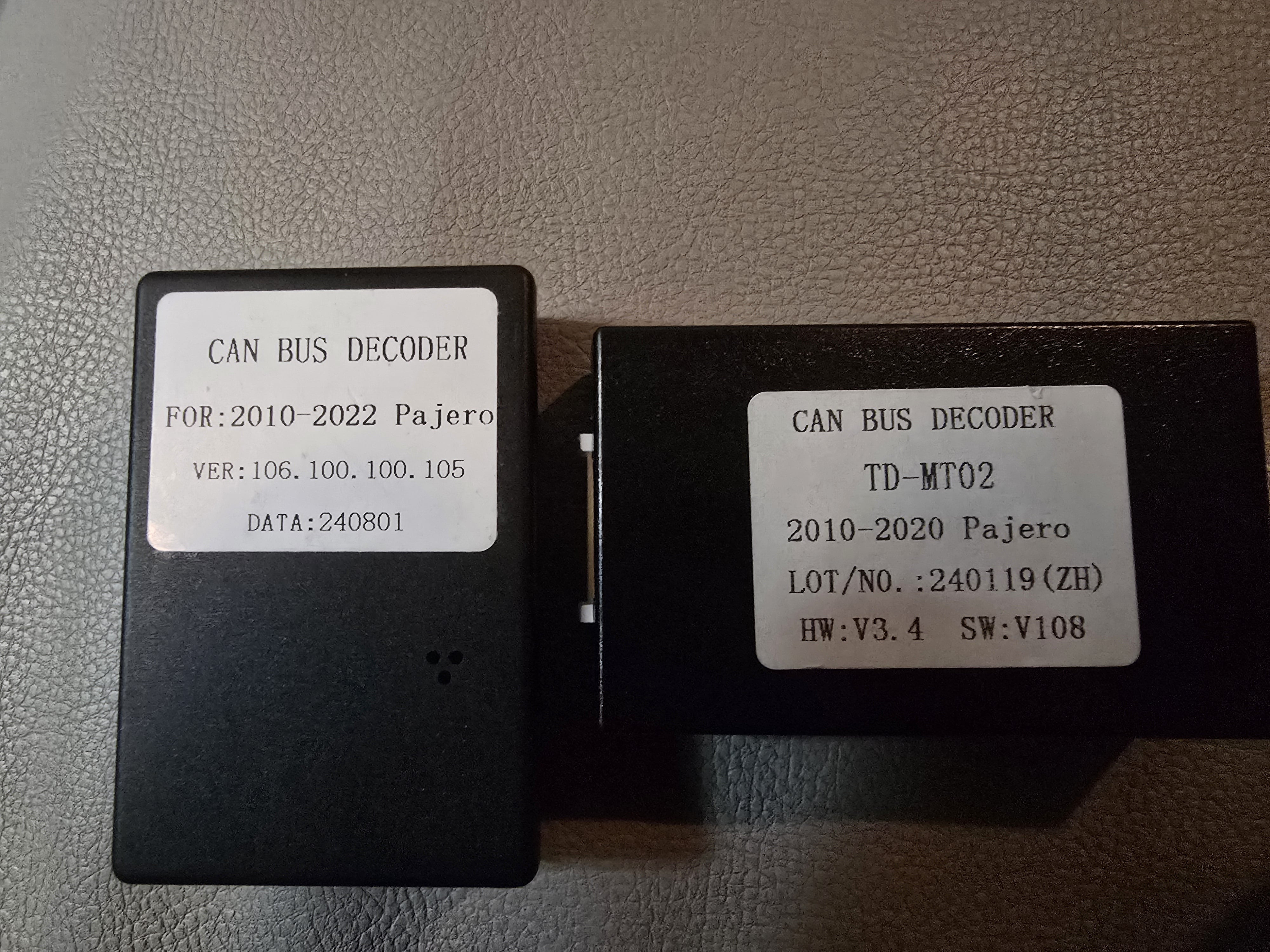

Photo of canbus boxes and system information provided. Thank you.

dudu-lai

lsd2k
I consulted an engineer, TD's CANBUS box, you can try XP, whether it can be used

lsd2k

dudu-lai

Hello, already done it, no doors opening, no amplifier control, no dynamic park lines, no fuel consumption.

dudu-lai

lsd2k Hello, the engineer said that the data files for TD and XP are the same.

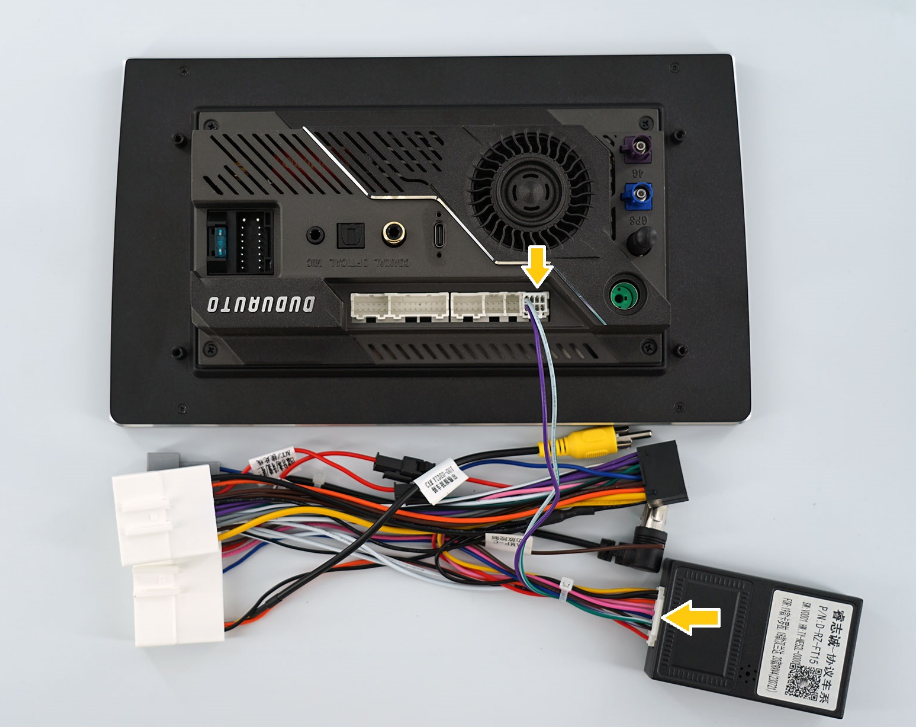

Please check if the CANBUS serial port of the C interface is connected correctly.

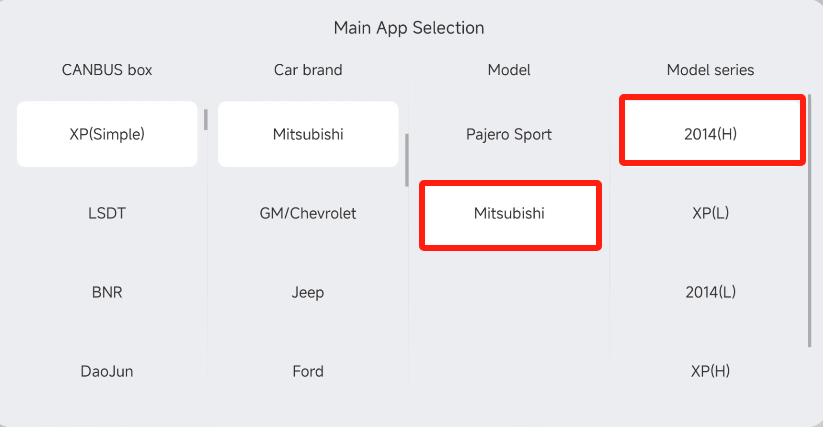

CANBUS Select XP-Mitsubishi-Mitsubishi-2014(H).And the CANBUS log that records the door information/dynamic guide line. (Record the screen scrolling log with your mobile phone, upload it to Google Drive, and share it with me for download)
Procedure：https://forum.dudu-auto.com/d/846-how-to-give-correct-feedback-on-canbus-errors

lsd2k

XP shown incorrect dynamic parking lines it's always see one way

lsd2k

Dear dudu-lai, I have sent you google drive link to canbus logs and video in private conversation. Please check and please add dynamic park lines. Thank you.

dudu-lai

lsd2k Hi, have you tried the APK I sent you?

dudu-lai

Hello, in the latest DUDUOS system, add TD-Mitsubishi Motors option - select the option in my picture
