  • Reverse detected but still - no image

1) Reverse camera (is detected & displayed) when selecting/using front/rear camera app (ADVR app?).

2) Reverse camera (is detected & displayed) when reverse camera male RCA is plugged into yellow AUX RCA and yellow CAM-Vin RCA while selecting front/rear camera app.

  • I have the G5 android HU (brown wire) tapped into the vehicle's reverse trigger wire (12v in reverse // 0v when not in reverse gear).

What does NOT work:

1) Reverse camera (is detected - no image displayed) when in reverse gear but I see the back up guidance lines & distance warning sensors. When the reverse camera is plugged into the yellow CAM-Vin RCA, but works when put into the yellow AUX RCA, but it remains on.

I hope to figure out why the camera displays fine, but won't trigger properly. Everything else on the HU seems to be working properly including SWC canbus controls.

Vehicle: 2007 Lexus LS600H // DUDU7 9.5 INCH HU //

Thanks.

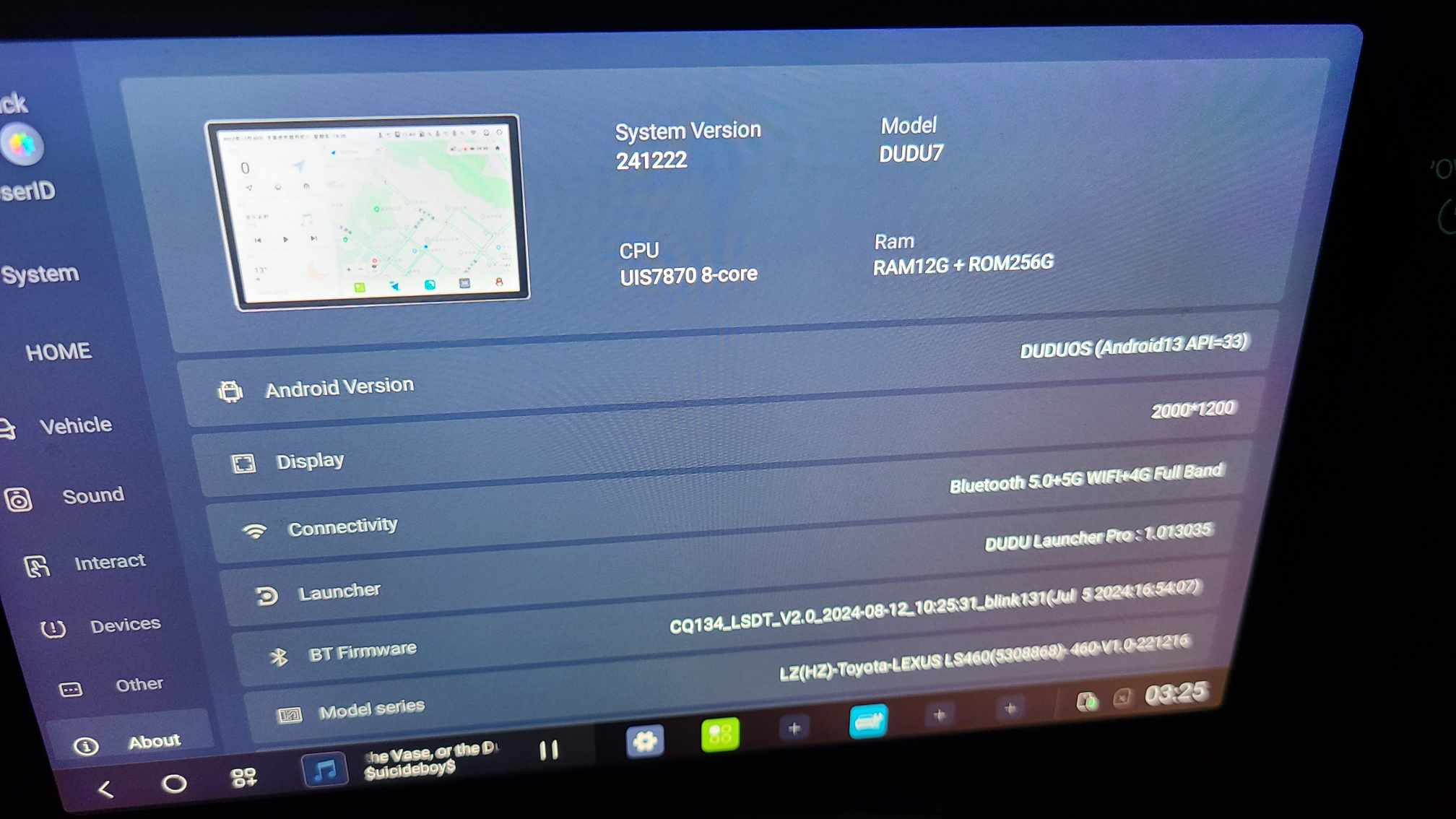

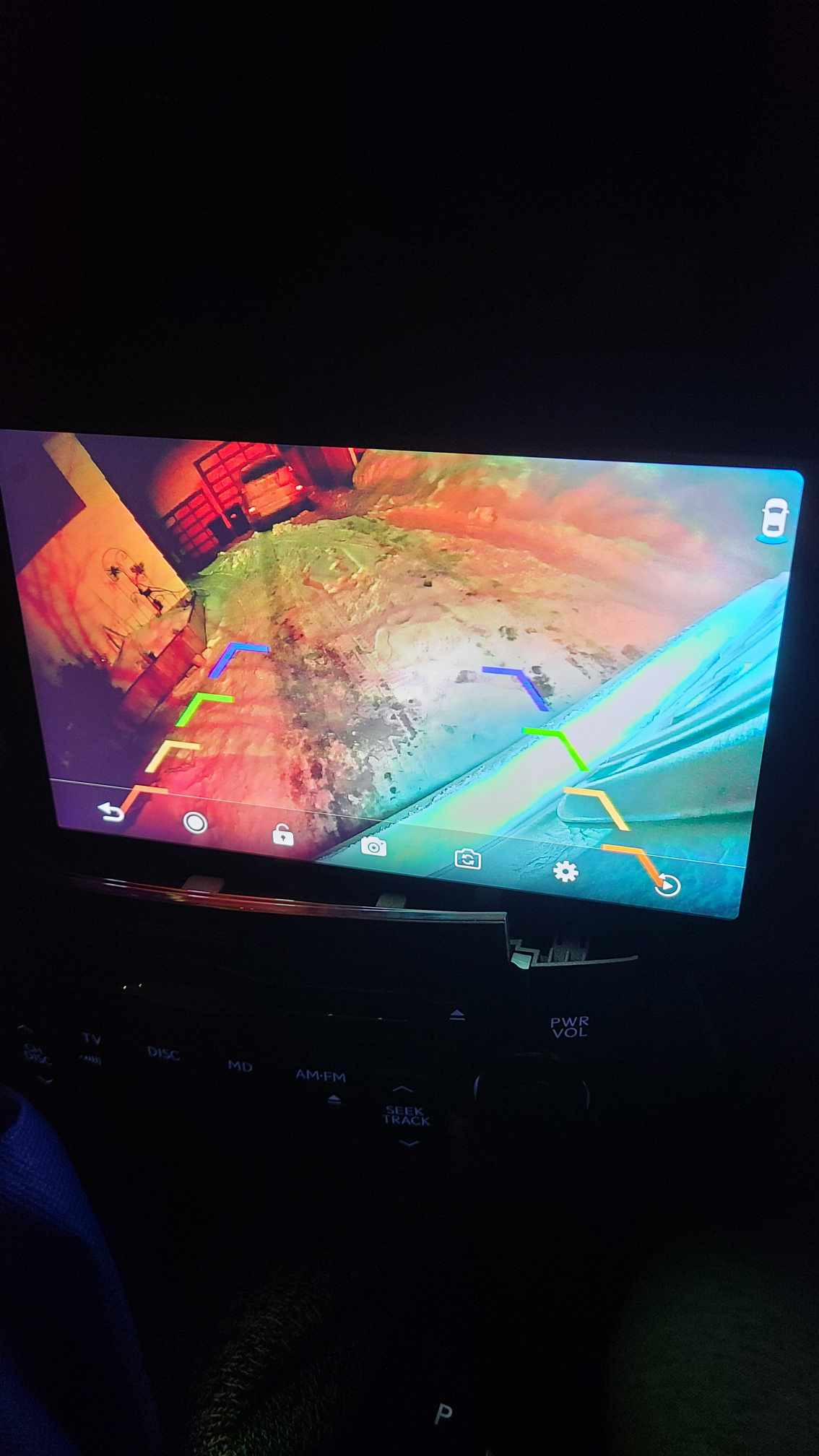

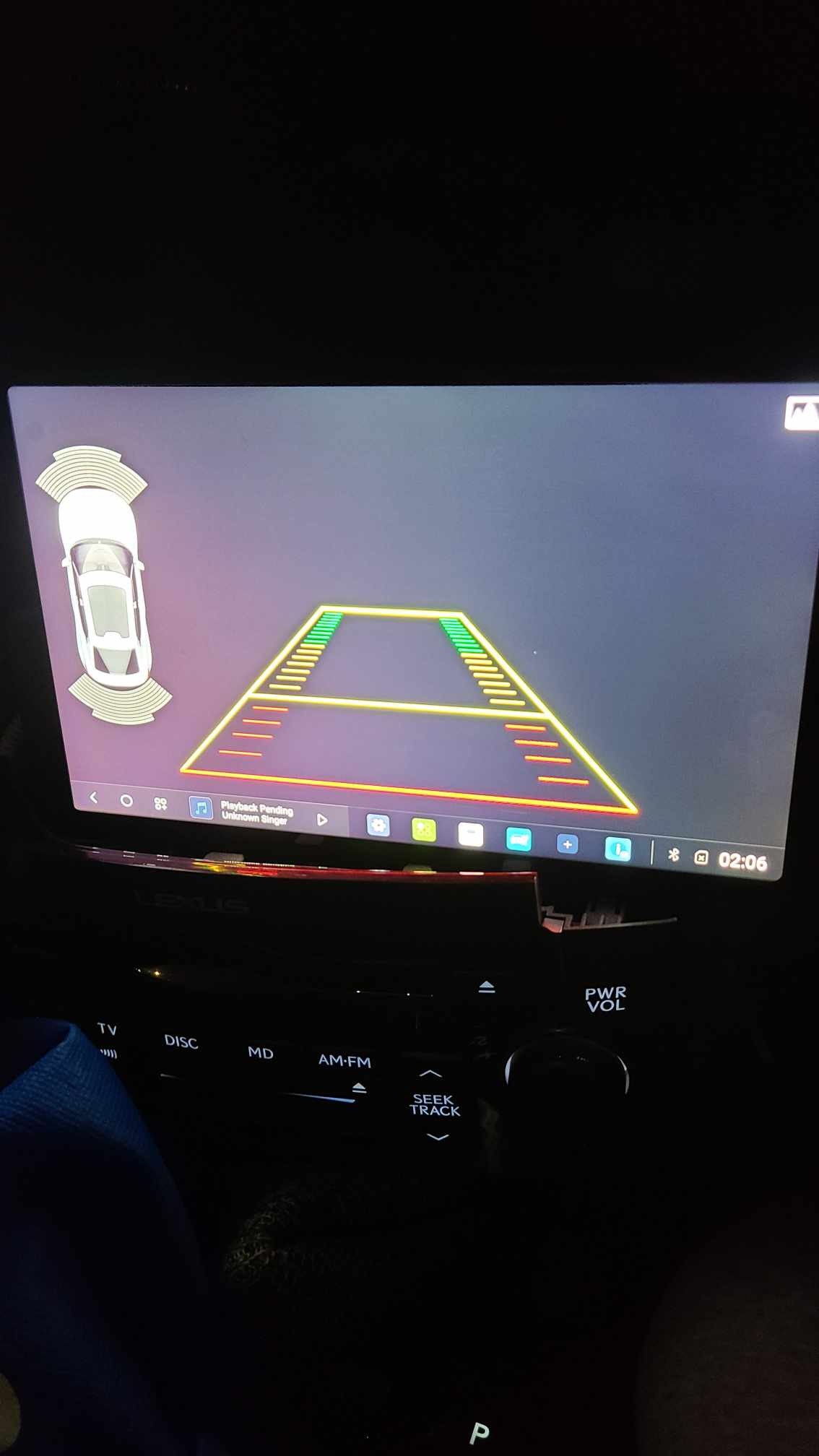

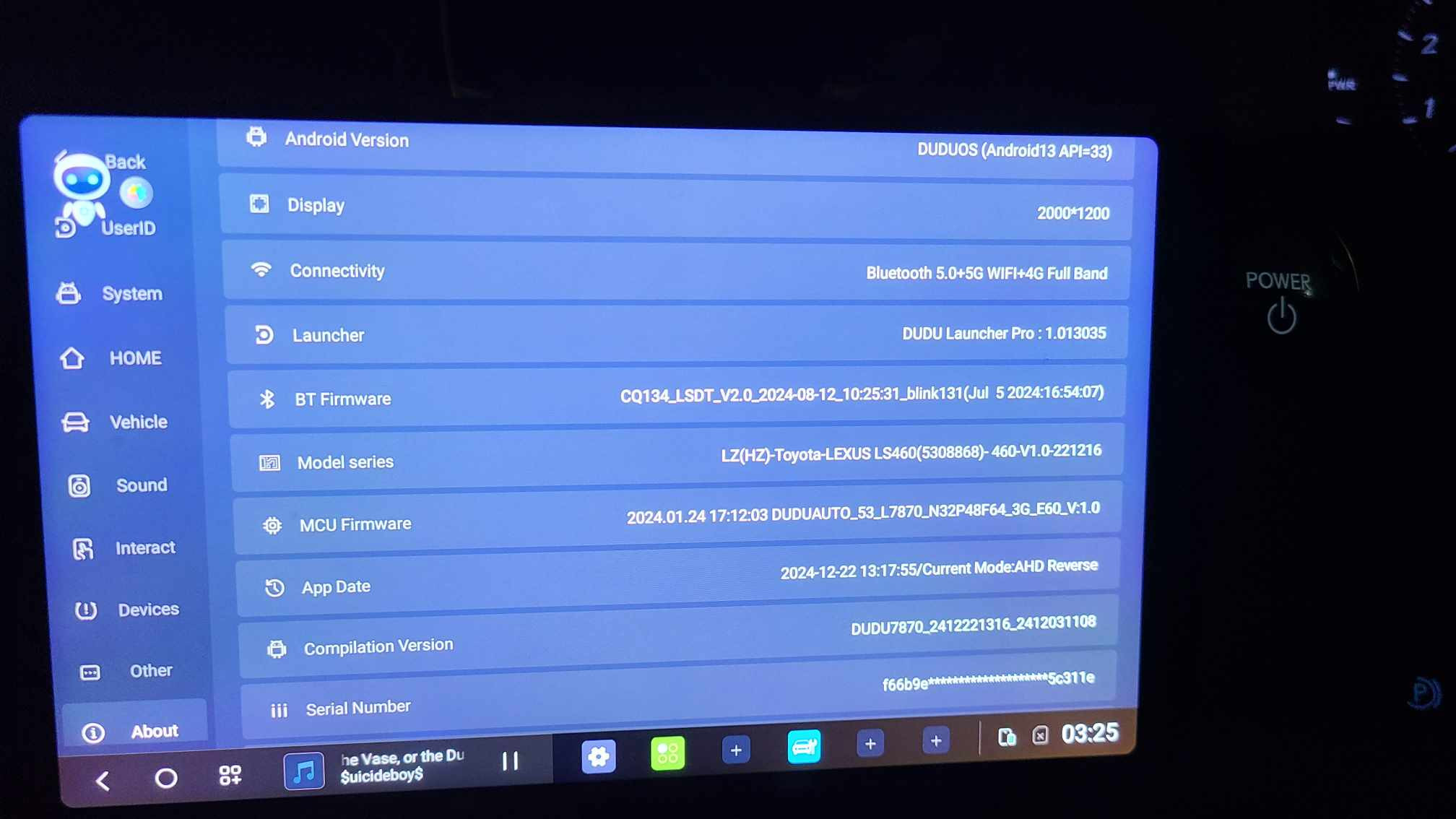

Four images showing my issues I've run into!

    Ls600h Hello, the wiring is correct.
    The screen is black when you put it into reverse gear, you should plug the camera into the yellow cam-vin RCA and go to Settings - Automotive - Reversing Camera - HD Video Format Selection - TVI
