Calibration app for 360 camera

Chaz517

Got the cams installed and running. I dont see anywhere to properly calibrate it however using the calibration cloth. Where can I find it?

dudu-lai

Chaz517 https://t.me/duduauto/26940/255298
https://wiki.dudu-auto.com/en/%E5%85%A8%E6%99%AF%E6%95%99%E7%A8%8B/%E6%8B%BC%E6%8E%A5%E6%95%99%E7%A8%8B

Chaz517

dudu-lai ohh, ok, thank you. I wasn't sure what splicing meant.

Thanks!!

Lovemysaab

I am finding the set up with grid management frustrating.
I always end up with stitching error! I must be doing something wrong but don’t know what.

Lovemysaab

I get : auto stitching fail.

Mikescotland

Lovemysaab you need to provide pictures what mats you have, auto stitching doesn't work on basic mats. Also you need to input all the measurements of your car into relevant boxes.

Lovemysaab

All the dimensions were entered and the appropriate grid pattern also…. (Many times).
I’ll change the camera type today and see how I go.

Mikescotland

Lovemysaab you still did not provide mats picture. As I said not all of them are suitable for auto stitching. Plus, manual stitching isn't really huge time consuming task. Takes 10 minutes.

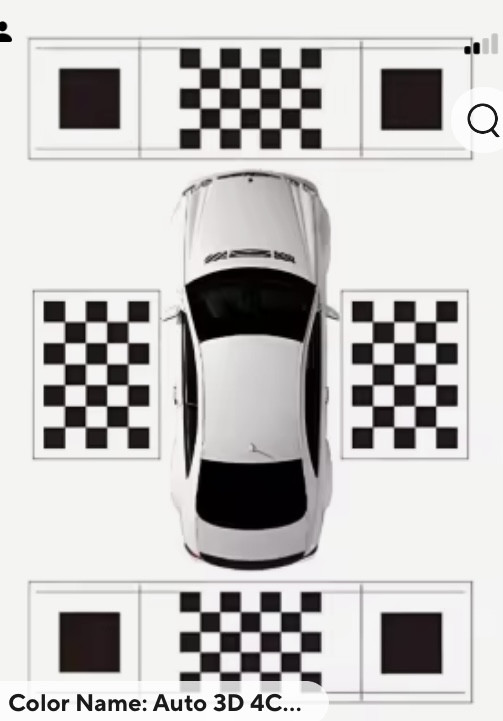

Lovemysaab

Mikescotland

Lovemysaab this one should support the auto stitching. Maybe @DUDU-Meng or @dudu-lai can shed some light?

dudu-lai

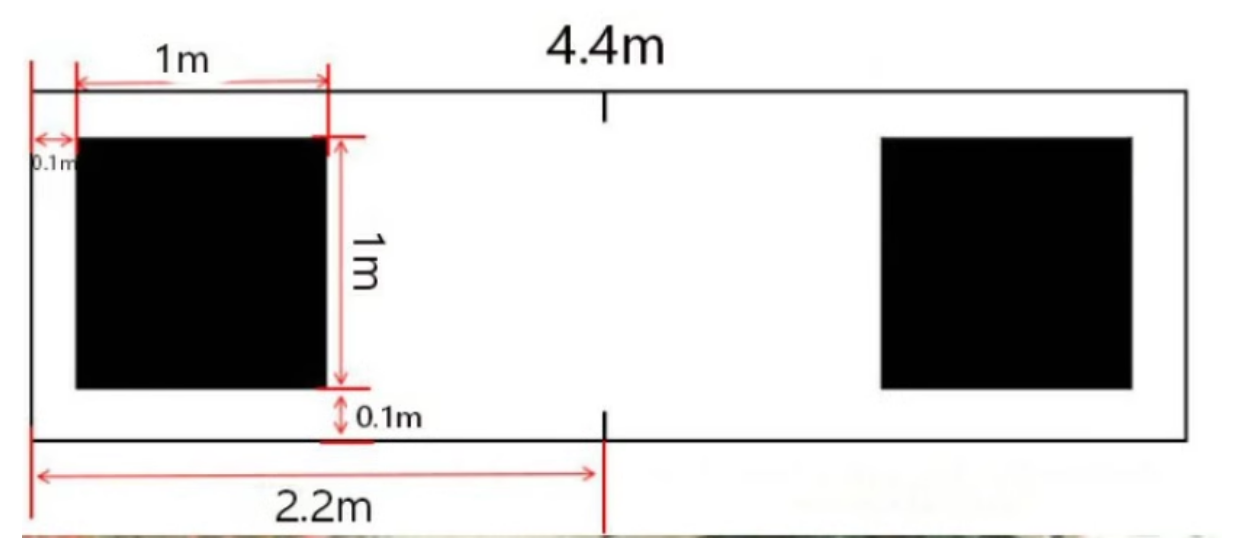

Use this specification of fabric

Lovemysaab

When splicing fixed point I can ONLY use the front camera. The others L-R & rear will not show up.Am I not hitting the right buttons or is there a software problem. I give up🙁

Lovemysaab

Can dudu7 HELP. unable to splice L&R & rear cameras.
I have followed the tutorial many times BUT still unable to find where theses cameras are.
I am only able to do the front one.
Dudu7 with 360 chip and cameras.
Also unable to upload a video of the it.

Lovemysaab

Well persistence beats resistance!
One more try of splicing and success🙂 the problem was I had left the plastic film on the screen until the installation was complete. On frustration I tapped the screen with much conviction bringing up the appropriate camera…...Much relief🙂

Lovemysaab

This is a very vague specification illustration, no idea where the car is to be placed.
Can you be more specific please.

Mikescotland

Lovemysaab https://www.teyes.uk/blogs/news/cc3-3d-360-surround-view-calibration-guide this is much better calibration guide, remember to enter your camera model though as per Dudu instructions.
