Nissan qashqai 2011 canbus

Koty93700

Mikescotland jheeze, wish you a lot of success doing it. It seems really not easy. Keep going mate

Mikescotland

aerodomigue projects looks good.
What i don't like is uploading my pdf file from my Google drive without mentioning the source. I spent almost a month to capture and compile majority of the newest Toyota Rav raise protocol. That said I'll refrain from publishing newest addresses for seatbelt, handbrake, gearbox and fuel consumption and remaining range which are missing in the original document for now.

aerodomigue

Mikescotland ,my sincere apologies for the oversight. I have just updated the repository to properly credit your extensive work on the Toyota RAV4 protocol analysis.

You are now explicitly cited as the author and source in:

The main README (both English & French versions) with a direct link to your file (dudu profile).
The technical documentation (RADIO_SEND.md).
The source code headers (main.cpp and RadioSend.cpp).

I truly value the month of work you spent capturing and compiling this protocol. I hope this correction meets your expectations.

Mikescotland

aerodomigue
I forgot one interesting thing, sending media title and artist FROM Dudu to the car / external display. I have 3 inch small screen in the dash with esp, showing my DPF status and also media played on DUDU.
You can take a look at the communication on 2E 99:
https://forum.dudu-auto.com/d/3292-media-info-on-mfa-vag-dashboard/12

Parser

if(cmd==0x99 && len>=3 && p[0]==0x83){
    uint8_t subtype=p[1];
    const uint8_t* str=p+2;
    size_t L=len-2;

    if(subtype==0x02){
        decodeUtf16LeAscii(str,L,mediaTitle,sizeof(mediaTitle));
        mediaDirty=true;
        mediaLastTouchedMs=millis();
    }
    else if(subtype==0x03){
        decodeUtf16LeAscii(str,L,mediaArtist,sizeof(mediaArtist));
        mediaDirty=true;
        mediaLastTouchedMs=millis();
    }
}

anyz1979

aerodomigue на JUKE основной can сидит в can2, can1 это мультимедия. вероятно вы тоже не туда подключали канбас поэтому ничего и не заработало.

Mikescotland

[unknown] just mention would be fine! 😂 But appreciate it

Chubaka885

@Mikescotland @polihedron @aerodomigue
Guys
Great work!!!!!!
We've created a special tag (section) where you can create your own threads describing and discussing your work.
Tech and Tutorials
I think many users will try to replicate your work for themselves. It would be great if you created threads in the new section to discuss your work.

anyz1979

dudu-lai tell me, do you have any information about the canid toyota pav4? in dudu7, information from the canshina is also broadcast to the car application.

dudu-lai

anyz1979 The Toyota RAV4 has excellent compatibility. What kind of issues are you encountering?

anyz1979

dudu-lai needs 4 can_id in toyota RAV4 -

Fuel Level
Coolant Temp
Fuel Consumption:
Instant. Consumption
Average Consumption

information on Nissan is available here https://github.com/aerodomigue/esp32-canbox-nissan/blob/master/docs/technical/CAN_CAPTURE.md
and to convert to toyota rav4, you need canids - in the documentation (睿志诚软件_丰田CAMRY & RAV4 串口通讯协议 V2.21.000) they are not there, maybe you have some more information, the software on the gu works with rav4, so you must have this file, or is it the work of FYT?

guys are making a converter from a nissan to a rav4, but there's not enough information, and I'm wondering if you have any documentation that can't be found online)

dudu-lai

anyz1979 (睿志诚软件_丰田CAMRY & RAV4 串口通讯协议 V2.21.000)
Where did you get this document?

anyz1979

dudu-lai https://github.com/aerodomigue/esp32-canbox-nissan/tree/master/docs/protocols/raise-toyota-rav4

but it's crooked and incomplete 🙂

dudu-lai

anyz1979 Similar documents are proprietary and confidential to the CANBUS box manufacturer; we do not possess them. Only Raise has the authority to distribute them.
You may contact Raise directly for assistance.

anyz1979

dudu-lai well then make a normal support for the nissan juke, in topway everything is perfectly implemented, in dudu7 at all, is it necessary to change dudu7 to topway?

dudu-lai

anyz1979 The same CANBUS box is perfectly supported by Topway. Please demonstrate the differences.

anyz1979

dudu-lai подерживает полностью все, и климат и настройки режима работы машины.

dudu-lai

anyz1979 CANBUS Box: G-RZ-DF57
Your Vehicle: JUKE 2011
According to official documentation released by Raise—and personally confirmed by their engineers—this product does not support air conditioning control or display functions. Furthermore, Raise engineers explicitly stated that they conducted compatibility testing solely on the 2016 model year; the 2011 model year falls outside the scope of supported vehicles.

Given this, how exactly does Topway manage to implement the air conditioning control functionality? Is it capable of directly controlling the vehicle's AC system without the aid of a CANBUS box? Both the Raise engineers and I are extremely curious about this; therefore, we sincerely request that you record a video demonstrating the use of the Topway device.

anyz1979

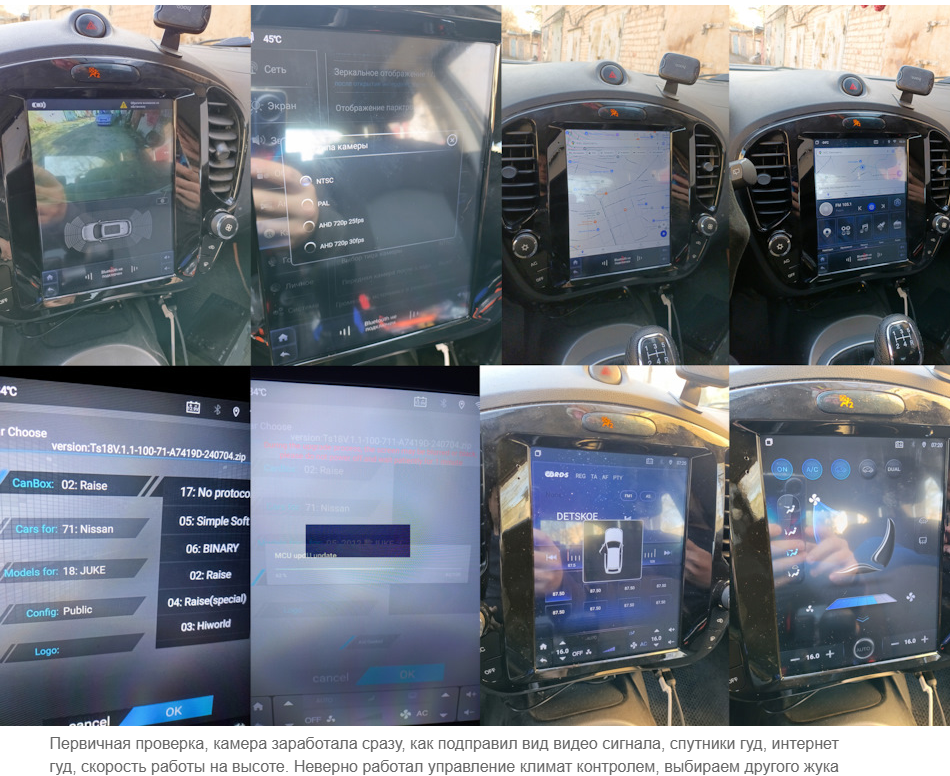

dudu-lai климат работает, читайте -
https://www.drive2.ru/l/705009605582786757/

Так это как не мое видео снять не получится.

anyz1979

aerodomigue нашел вот такой документ по датчикам rav4

dudu-lai

anyz1979 Topway is a custom-designed vertical screen device for JUKE, and its original physical air conditioning buttons have been removed; it does support air conditioning system control and display, but it uses a different wiring harness.

Your current DUDU host is a landscape version and does not support air conditioning control.

Air conditioning control can only be achieved by using a custom-designed vertical screen device for JUKE, along with the corresponding wiring harness and CANBUS decoder box.

anyz1979

dudu-lai да обычный вроде, просто канбас там работает, а на дуду7 нет, я об этом. Приходится делать какие то конвертеры в рав4
