Citroen C4 aircross CANBUS

mircondini

DUDU7 12-256 + 360 10inch
I have tried both Simple Soft RP5-MT-002 (currently in use) and Simple RP5-MT-101.
Neither of them detects the car data, even though the original display shows a lot of data, including the door opening.
In no menu does the Citroen C4 aircross 2014 model appear, and I was advised to use XP-Mitsibishi-Mitsubishi-XP(H).
with the Simple RP5-MT-002 I find at least the steering wheel controls (even if the forward and back buttons are reversed); with the Simple RP5-MT-101 I do not find any steering wheel controls.
How can I solve this?

dudu-lai

Citroen C4 cars, why would you use a CANBUS box from Mitsubishi?
Simple official website where you can check the correct CANBUS model you should be using
http://www.ssinterface.com/show_list.php?id=32&pid=72

mircondini

dudu-lai because there is no mention about my specific car (Citroen C4 aircross 2014). Mitsubishi ASX 2014 it's same project (Citroen/Mitsubishi/Peugeot). If you have any suggestions for me, you're wellcome

dudu-lai

mircondini

dudu-lai I own even 001 model, but chooseing xp Mitsubishi not steer controls fouded. Could you please tell me which model I have to choose, as my model doesn’t exist into the lists (I searched into every canbus list)?

mircondini

dudu-lai what about MT-002 or 001?

dudu-lai

mircondini
You can try all the options under the Peugeot/Citroen list instead of choosing Mitsubishi

mircondini

dudu-lai Sorry, I just realized I own an RP5-MT-101 model (a consultant by Mekade suggested to me as replacement of mine RP5-MT-002.
So, now, I shoud buy a third canbus. Are you sure this canbus get all data from my car (RP5-MT-002 get steer command but not other as door opening ad radar signs)?

mircondini

I will 🤔

dudu-lai

mircondini What the hell kind of car do you have?

mircondini

dudu-lai I'm always polite, anyway...
I own a Citroen C4 aircross 2014
I own a Simple Soft RP5-MT-002 canbus which get steer controls, but not others data (door opening, for example)
A Mekade consultant suggested me to use a Simple Soft RP5-MT-101 model; after installation no steer command founded (even if chooseing different car models... but always Mitsubishi, as my car doesn't exist in any list of any canbus.
Now, you suggested to me another (the third one) canbus model. It's ok to buy it, but I would like to be sure that it will work

dudu-lai

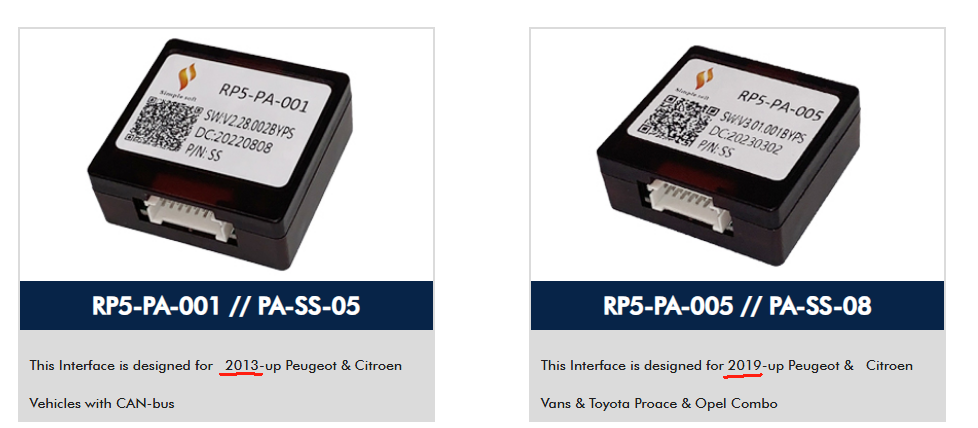

mircondini That's what confuses me, your car is a Citroen C4, but I checked on the official XP site that you should use the following CANBUS box. You are using the wrong model, and selecting the model in DUDU is also wrong (your car is a Citroen C4, but Mitsubishi is selected, and the DUDU list has the -XP-Citroen- option).

I just want to express this problem. XP does not help us when your car uses a model number that does not match the CANBUS box in the XP public information.

I would suggest that you replace it with a model that matches the correct model in the XP public information. I don't know what information it would provide (since I don't own the car, I can't answer you exactly). But XP can only help us if we have problems with the correct model CANBUS box!
You can contact mekede sales to double-check!

mircondini

dudu-lai Sorry, but the problem it's exactly car model. Citroen C4 and Citroen C4 aircross are erent projects. Citroen C4 aircross share main project with Mitsubishi ASX and Peugeot 4008 (are essentially the same car with different brands).

dudu-lai

mircondini Sorry, it's my problem. I thought the C4 and C4 aircross were just different configurations.
(Mitsubishi ASX platform, Peugeot 4008 exterior, car name Citroen C4 aircross).
